Promould / Profile

QN 005s / Stacked beveled quoin

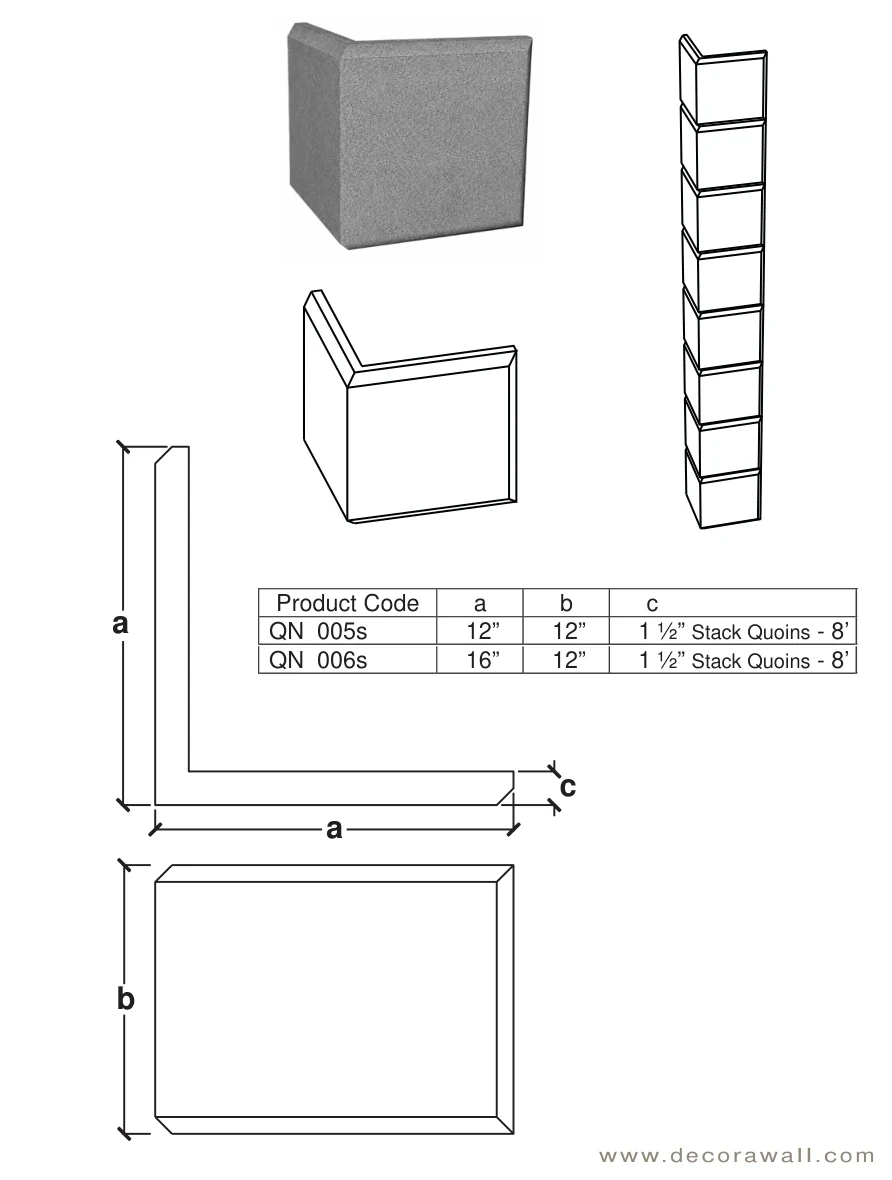

Catalogue render shared by QN 005s, QN 006s. Refer to the dimensions for this size.

View catalogue dimensions

Detail reproduced from the published catalogue. Dimensions govern; screen image is not to scale.

Profile dimensions

Return a: 12 in
Height b: 12 in
Thickness c: 1 1/2 in

Catalogue lists stacked quoins in 8 ft lengths.

Use the catalogue section to develop your detail. Confirm availability, lengths, tolerances and suitability for the project with Decorawall.

Part of the Promould exterior moulding range. Learn about its EPS core, fiberglass mesh and coating.

Discuss this profile →

Applications

Custom architectural profiles →

Source & technical documents

Promould catalogue 2026, PDF page 63 →Promould® Catalogue 2026 →Promould® Technical Specifications 2026 →Promould® Installation Guide 2026 →

Installation context

No installation photograph has yet been verified against this exact profile code. Explore the system gallery for application context, or ask the team for a confirmed example.
